W16LT G11: certified turnkey laptop for Grass Valley EDIUS 11

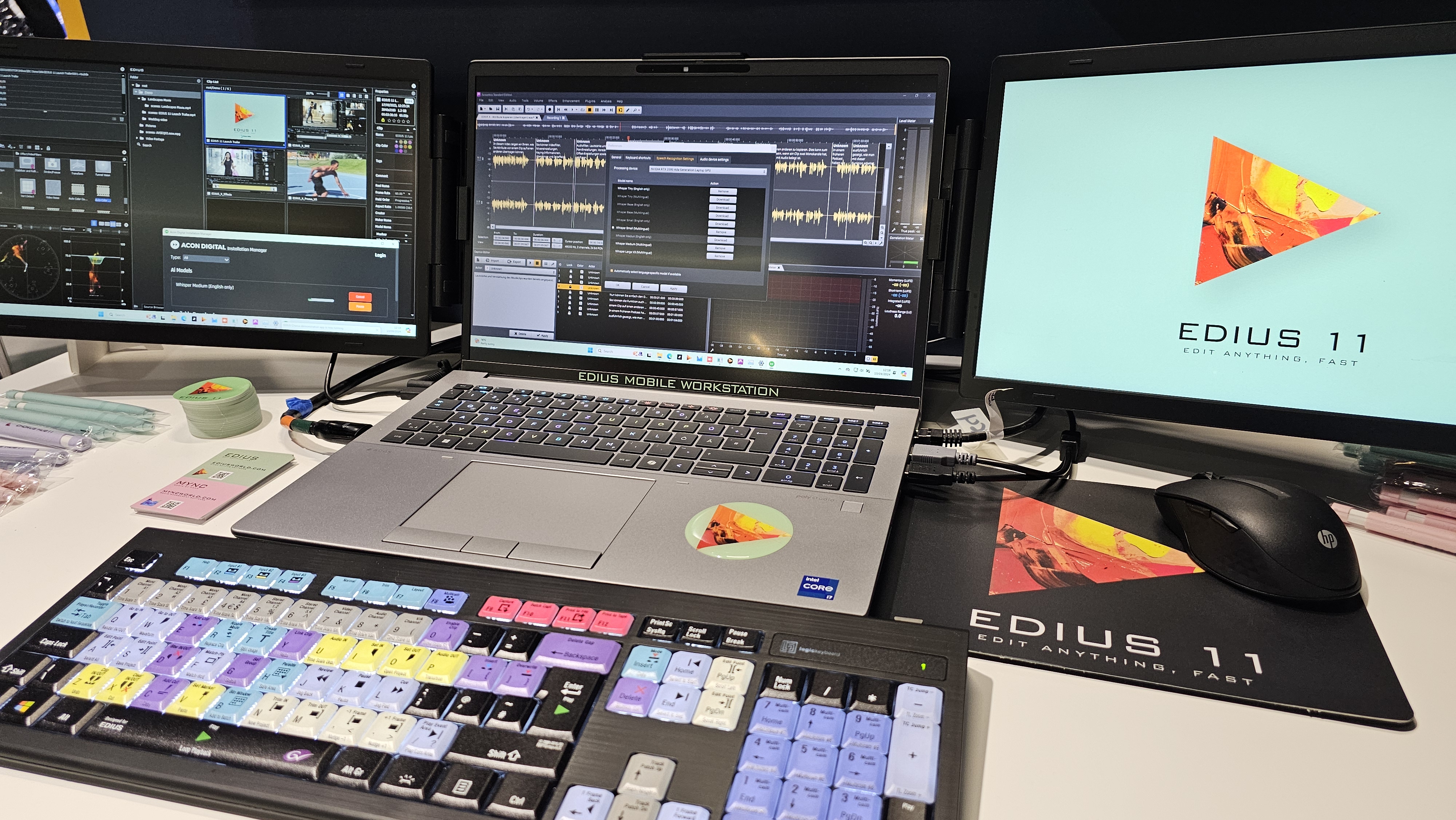

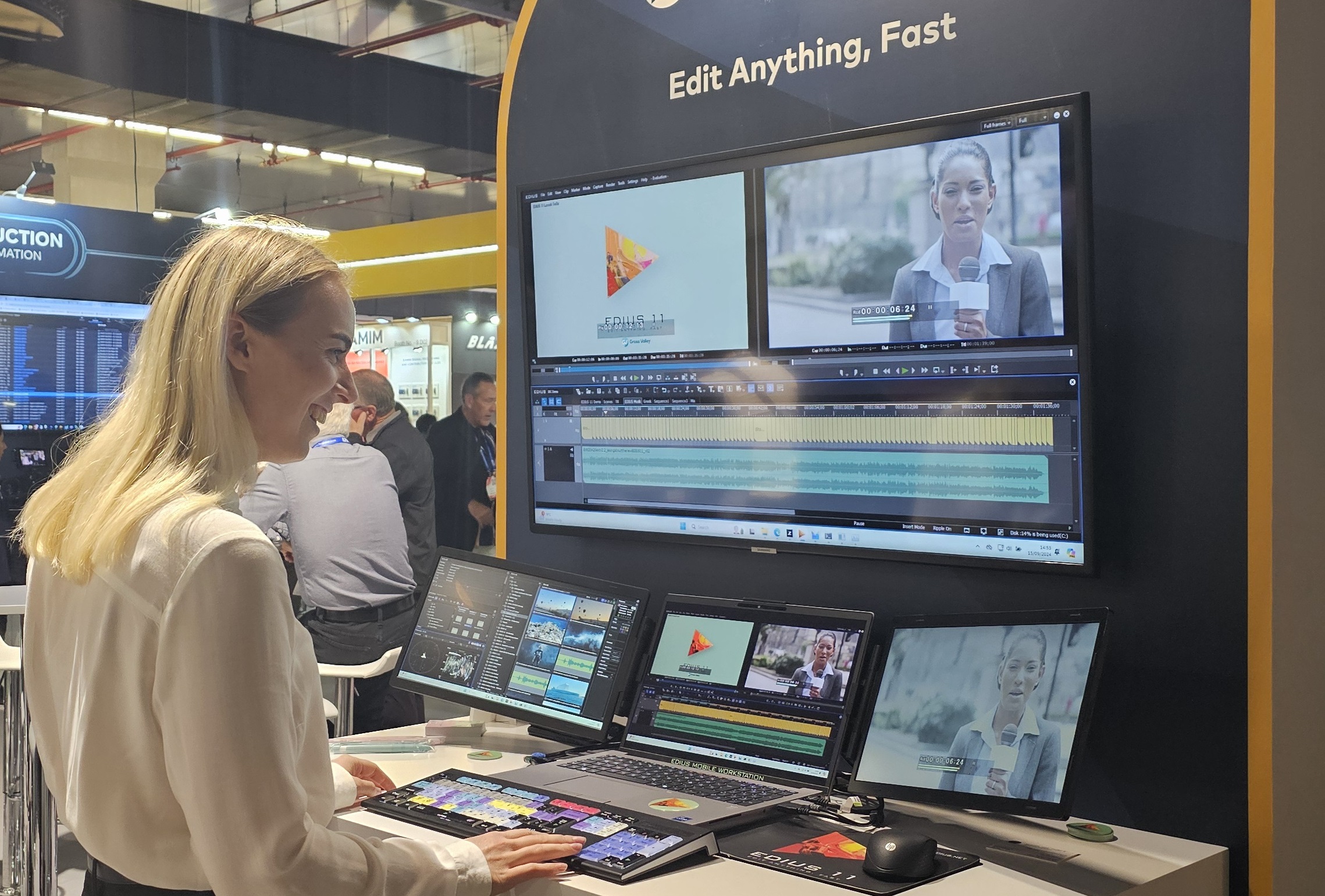

IBC innovation from September 2024 - now available at short notice

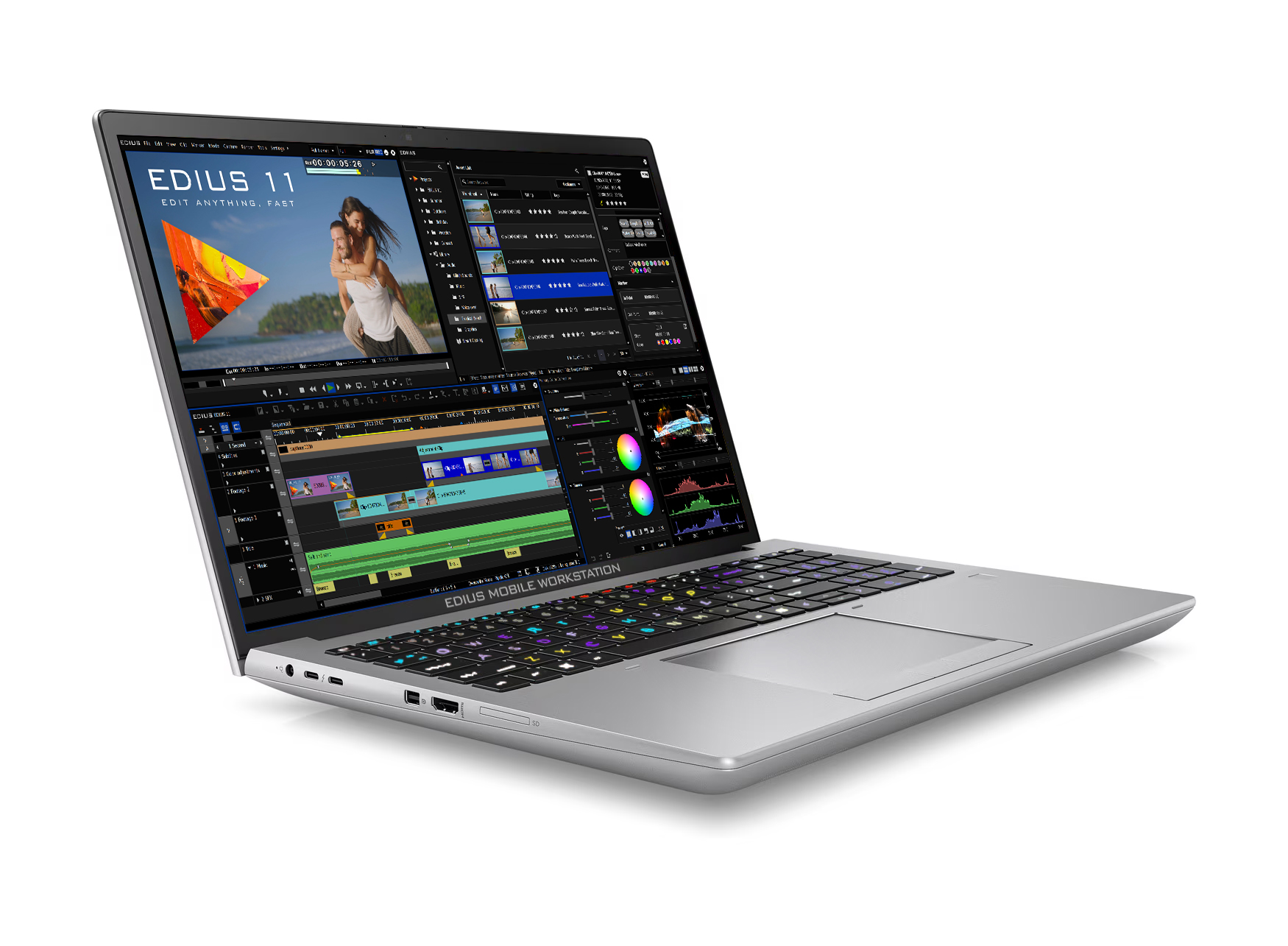

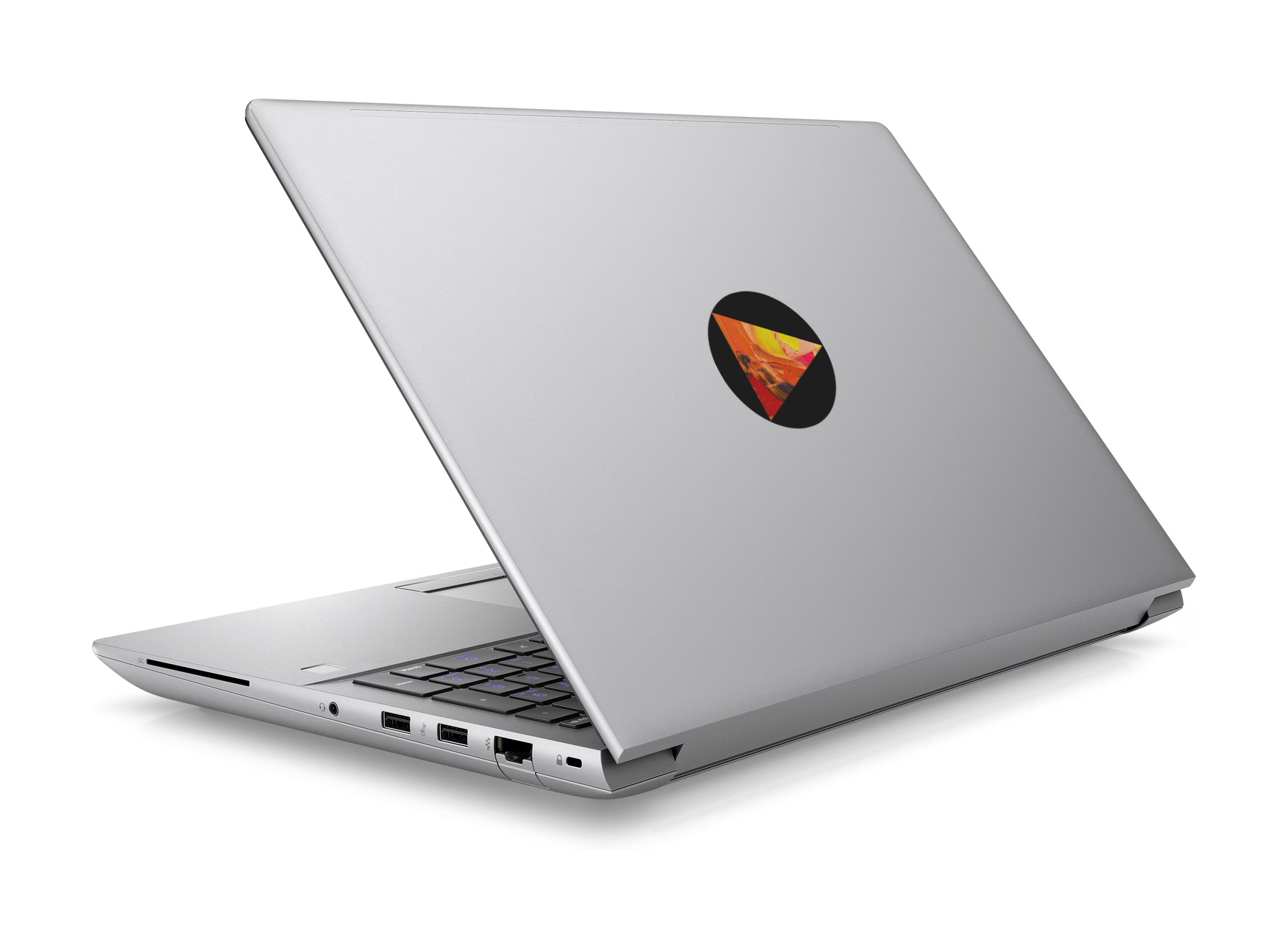

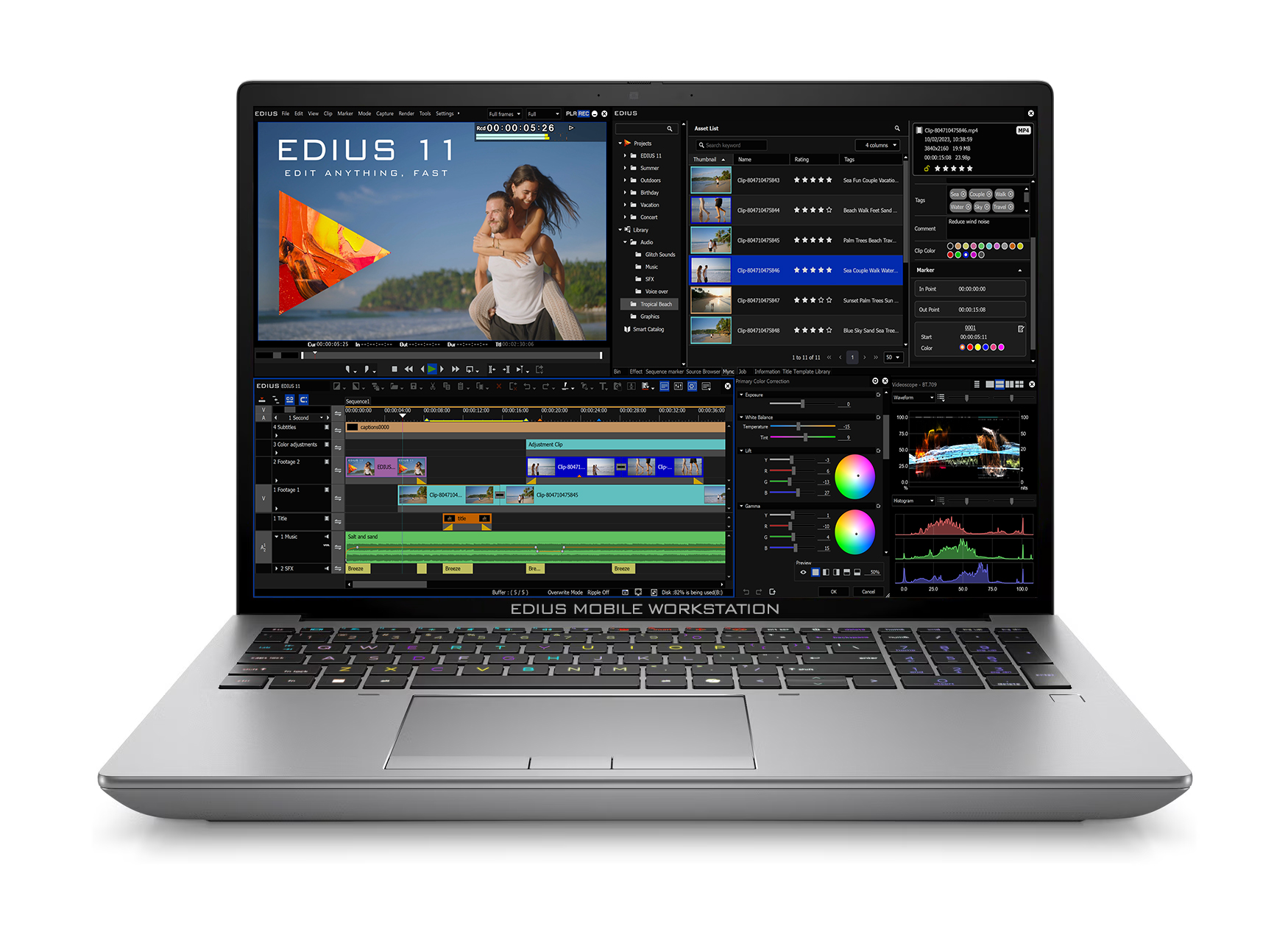

The EDIUS MOBILE WORKSTATION W16LT G11 brings the full performance and the necessary equipment for professional editing to a highly mobile laptop size.
The first certified. mobile EDIUS workstation is perfectly matched to the latest EDIUS 11 version.

Certified laptop workstation for professional editing

Equipped with a powerful Intel processor, plenty of RAM and super-fast hard disk storage to ensure quick start-up and quick access to media files and the EDIUS project database. More stable operation and smooth working are absolutely guaranteed thanks to the certified system. In addition, the EDIUS MOBILE WORKSTATION has 2x USB 3.1 and 2x Thunderbolt 4 compatible USB-C ports, enabling both fast data transfer with external devices and the use of high-quality external video hardware.

The exceptionally bright display with 500 nits has a timeline-friendly 16:10 ratio, and the resolution of 3,840x2,400 pixels is higher than UHD or 4K. The anti-reflective display has a thin frame and offers extraordinary color reproduction at up to 120 Hz that covers 100% of the DCI-P3 cinema color space - much more than a normal PC monitor. Up to 4 external monitors can be connected via HDMI 2.1, miniDP 1.4a and 2x Thunderbolt 4. Operating VR glasses is also possible without any problems. The super-fast integrated SD card reader allows the fastest access to media files. Further data exchange can be carried out wirelessly via NFC, Bluetooth 5.4 and super-fast Wi-Fi 7, but of course there is also a classic gigabit network connection. The 3.5 mm audio connection can be used for both headphones and a headset with a microphone. The laptop has dual stereo speakers with exceptionally good sound for a laptop and stereo microphones as well as a 5MP webcam.

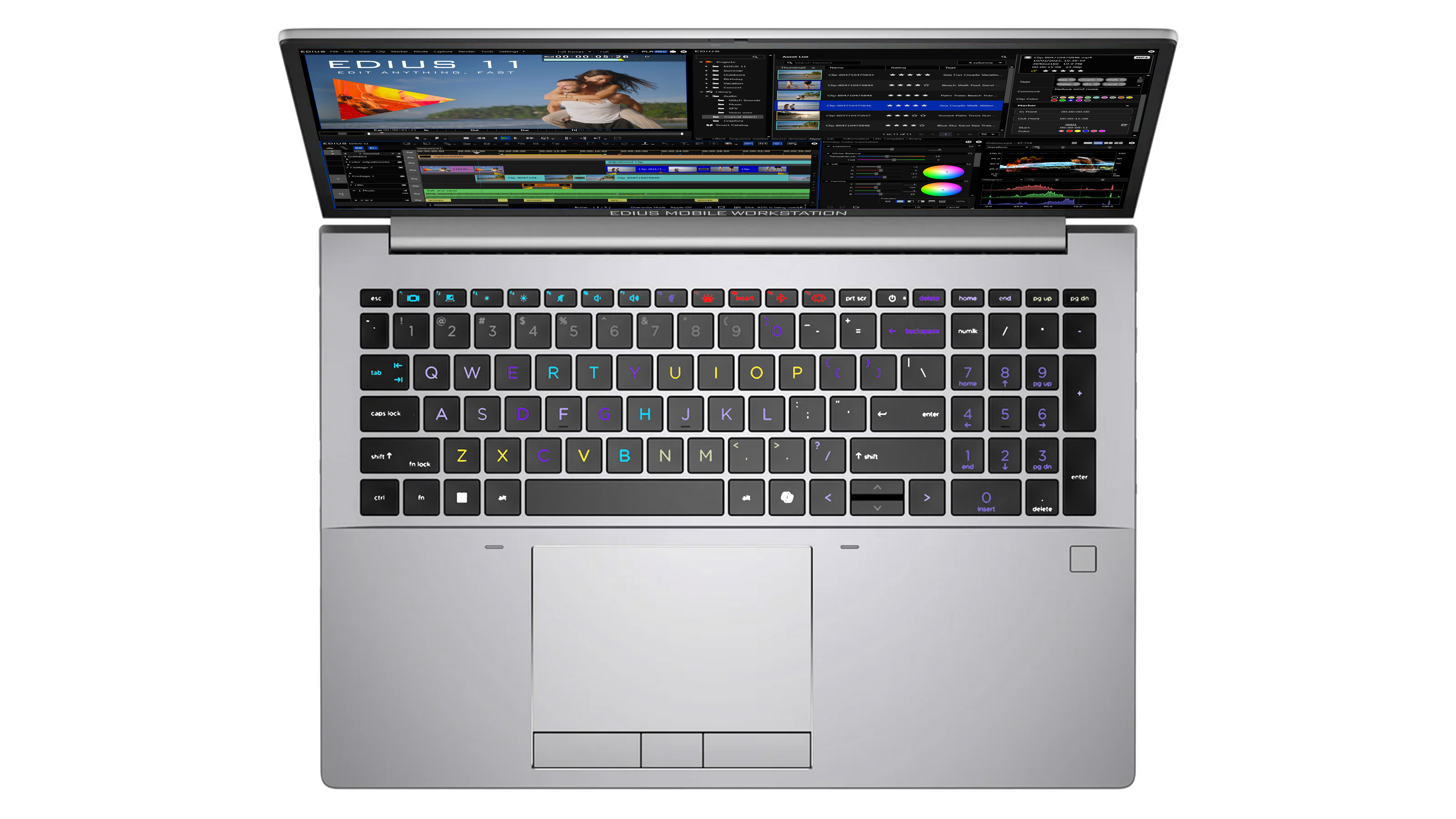

The keyboard of the EDIUS MOBILE WORKSTATION is a special highlight - thanks to the colored backlight in the truest sense of the word. In the same color design as the EDIUS professional keyboard V2, the individual keyboard shortcuts are designed according to function colors: light blue for navigation, yellow for markers, gray for trimming functions, red for recording and output, dark blue for multicam, purple for editing functions, etc. This makes it quick and comfortable to work with EDIUS - even in difficult lighting conditions. The keyboard is available with English, German or French layout. A large touchpad with 3 buttons is also integrated and the scope of delivery includes a Bluetooth mouse that can even be used across devices, as well as a matching EDIUS 11 mouse pad.

The laptop is also extremely robust and has even been tested according to the US military standard MIL-STD 810H. The battery has a quick charge function and can be charged to 50% in just 30 minutes. One of the USB ports also has a charging function for mobile phones and other devices and also works when the laptop is switched off. The laptop can be charged via the power connection with the included power adapter - or via the Thunderbolt 4 charging function via one of the two Thunderbolt 4 ports.

4.841 / 5.000

Equipped and optimized for the professional video editing software EDIUS 11 Workgroup

EDIUS 11 Workgroup is fully optimized and pre-installed on the EDIUS MOBILE WORKSTATION as a special offline version. The system therefore does not require internet access, which is particularly important for official use and in security-relevant areas. In addition, exclusive, special, locally operating AI extensions are pre-installed. EDIUS 11 Workgroup uses the graphics card more than ever before thanks to GPU acceleration and pipeline. EDIUS even supports the video formats of the latest cameras. EDIUS uses high-speed H.264/H.265 decoding/encoding with the help of the latest acceleration from Intel Quick Sync Video (QSV) as well as Nvidia NVDEC and NVENC. For optimal results, the EDIUS MOBILE WORKSTATION uses both acceleration systems and the powerful CPU.

Stable operation and reliable maintenance service

A professional 3-year support package including support via email, telephone and remote maintenance by EDIUS professionals as well as an international on-site service (also when traveling) in the event of a hardware defect are included as standard.

Operating system Microsoft Windows 11 Pro (64bit)
Video editing software Grass Valley EDIUS 11 Workgroup - special offline turnkey version
Processor Cores Intel processor (Performance Core x8, Efficient Core x12)
with H.264/H.265 encoding and decoding Acceleration
Threads 24 threads
Optional with 32 threads
RAM 64 GB
Optional with 128 GB RAM
Graphics cards Intel UHD Graphics and
NVIDIA Ada series with 8GB GPU RAM and H.264/H.265 encoding acceleration
Optional with 12 or 16 GB GPU RAM
Storage space (system, video) 1 TB (M.2 SSD), 2 TB (M.2 SSD)
Optional with up to 32 (4x8) TB internal M.2 SSD storage
Display 16 inches (resolution 3,840 x 2,400 pixels), DCI-P3, 500 nits and 120Hz

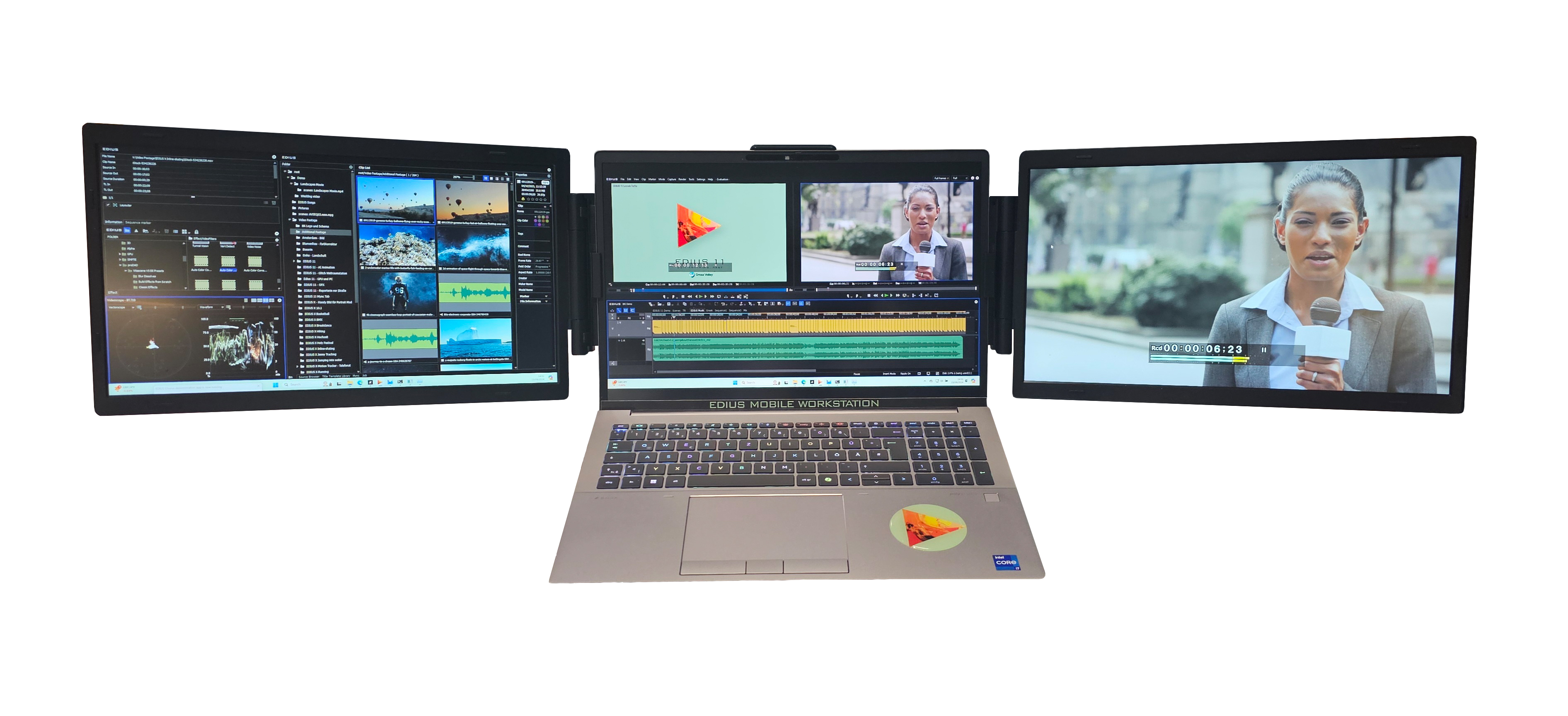

Optional as a 3 display solution with 2 additional 15.6" Full HD monitors - one to the left and one to the right of the main monitor

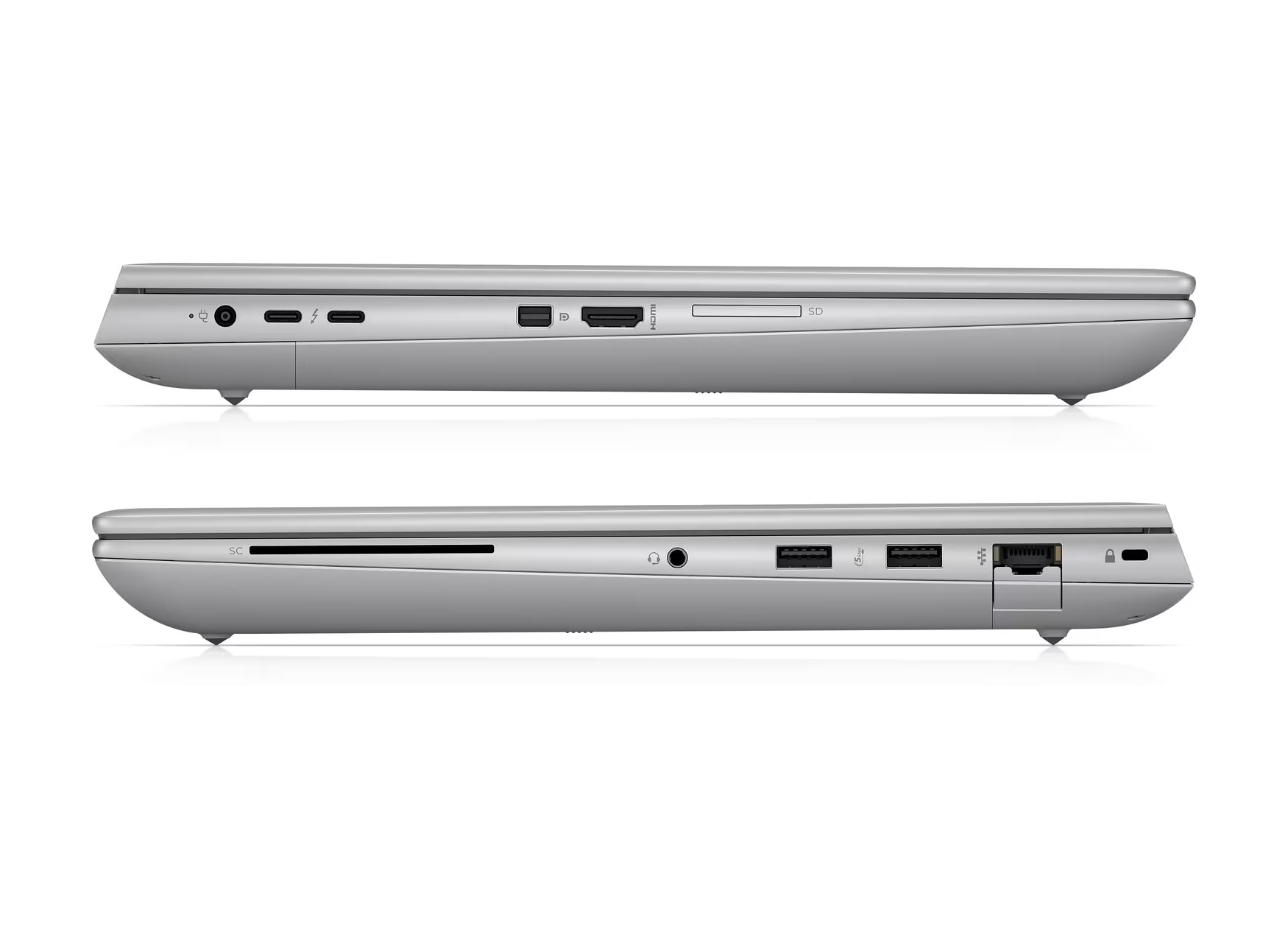

Interfaces Display 1x HDMI 2.1
1x mini-DP 1.4a
USB/
Thunderbolt
1x USB 3.1 Gen1 (with charging function) Type-A
1x USB 3.1 Gen1 Type-A
2x Thunderbolt 4 Type-C
Wired LAN Gigabit RJ-45 network connection
WLAN Wi-Fi 7 BE200 (2x2)
Bluetooth and NFC Bluetooth 5.4 and NFC
Audio integrated dual stereo speakers, integrated stereo microphone, 3.5 mm audio connection for headphones or headset including microphone
Keyboard English keyboard with backlight in the colors of the EDIUS keyboard shortcuts
Optional German or French
Mouse Bluetooth Mouse including EDIUS 11 mouse pad
Touchpad large touchpad with 3 buttons
Security Kensington Lock, fingerprint sensor, smart card reader
Power supply AC100-240V 50/60Hz
Energy consumption Maximum 230 W
Standard battery Lithium-ion polymer battery (8 cells, 95 Wh)
Operating temperature/humidity range 5℃~35℃ / 10%~90% (no condensation)
Body external dimensions 365 (W) × 250 (D) × 290 (H) mm
Weight 2.5 kg
Warranty 3-year international on-site service (including travel)
Note on Options

As can be seen in the technical description above, the certified system can be supplied not only in the standard version, but also with an extended range of features on request:
Feedback geben Zeichenbeschränkung: 5.000. Du kannst mithilfe der Pfeile weiter übersetzen. Übersetzungsergebnisse verfügbar - even more powerful CPU (32 instead of 24 threads)
- more RAM (128 instead of 64GB)
- even more powerful GPU (with 12 or 16 instead of 8GB GPU RAM)
- more internal storage space (up to 32 instead of 3TB)
- with a total of 3 15.6" Displays (2 additional in full HD resolution)

Your EDIUS dealer will be happy to send you an offer here.



Accessories

  • Power supply (230 W) including power cable
  • Battery (built-in)
  • Bluetooth mouse including additional USB receiver and EDIUS 11 mouse pad
  • Recovery USB storage
  • Support information

Installed included Software

  • Grass Valley EDIUS 11 Workgroup - Special turnkey offline version that works permanently without an internet connection (video editing software)
  • Extended EDIUS functionality with additional, locally working AI functions (exclusively for the EDIUS Mobile Workstation)
  • VisTittle 3 Express and QuickTitler (title creation software)
  • ProDAD Vitascene 5 EE (effects software)
  • Acon Acoustica EE (audio software and audio filter plug-ins)
  • Mync 11 (content management software)
  • Software for remote maintenance and support

Note: To create a DVD/Blu-ray, a separate optical drive connected via USB and an EDIUS 11 authoring license are optional available.
